定制你的DrawIO样式

Why

有时候我们用 DrawIO 在线版或者 VSCode 插件画图的时候,需要使用自己公司的配色和字体要求来做图;如果一个一个图形的选择,然后输入对应的样式值,这样很浪费时间;作为高效能人士,肯定需要将其形成模板存起来,使用的时候自动读取即可。所谓“一劳永逸”。

最近,写了一片博客,需要将博客里的图用公司的规范来做画,那么就得定制属于我们自己公司规范的样式。

What

在研究了https://app.diagrams.net/ 的配置说明后,发现其实定制很容易。只需要在配置中覆盖原有的样式即可。

而对于VS Code 的插件,拿vscode-drawio来说,只要在配置中键入自己的配置即可。

当然开始之前需要有自己的规范,如配色或字体等。

How

Web 版

配置位置

  • 应用-其他-配置

配置信息

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
{
  "customFonts": [
    "Noto Serif SC",
    "Bitter",
    "Arial",
    "Inter"
  ],
  "presetColors": [
    "none",
    "000000",
    "ffffff",
    "666666",
    "edf1f3",
    "003d4f",
    "f2617a",
    "cc850a",
    "6b9e78",
    "47a1ad",
    "634f7d"
  ],
  "customColorSchemes": [
    [
      {
        "fill": "#ffffff",
        "stroke": "#ffffff"
      },
      {
        "fill": "#003d4f",
        "stroke": "#003d4f"
      },
      {
        "fill": "#f2617a",
        "stroke": "#f2617a"
      },
      {
        "fill": "#cc850a",
        "stroke": "#cc850a"
      },
      {
        "fill": "#6b9e78",
        "stroke": "#6b9e78"
      },
      {
        "fill": "#47a1ad",
        "stroke": "#47a1ad"
      },
      {
        "fill": "#634f7d",
        "stroke": "#634f7d"
      },
      {
        "fill": "#000000",
        "stroke": "#000000"
      }
    ]
  ]
}

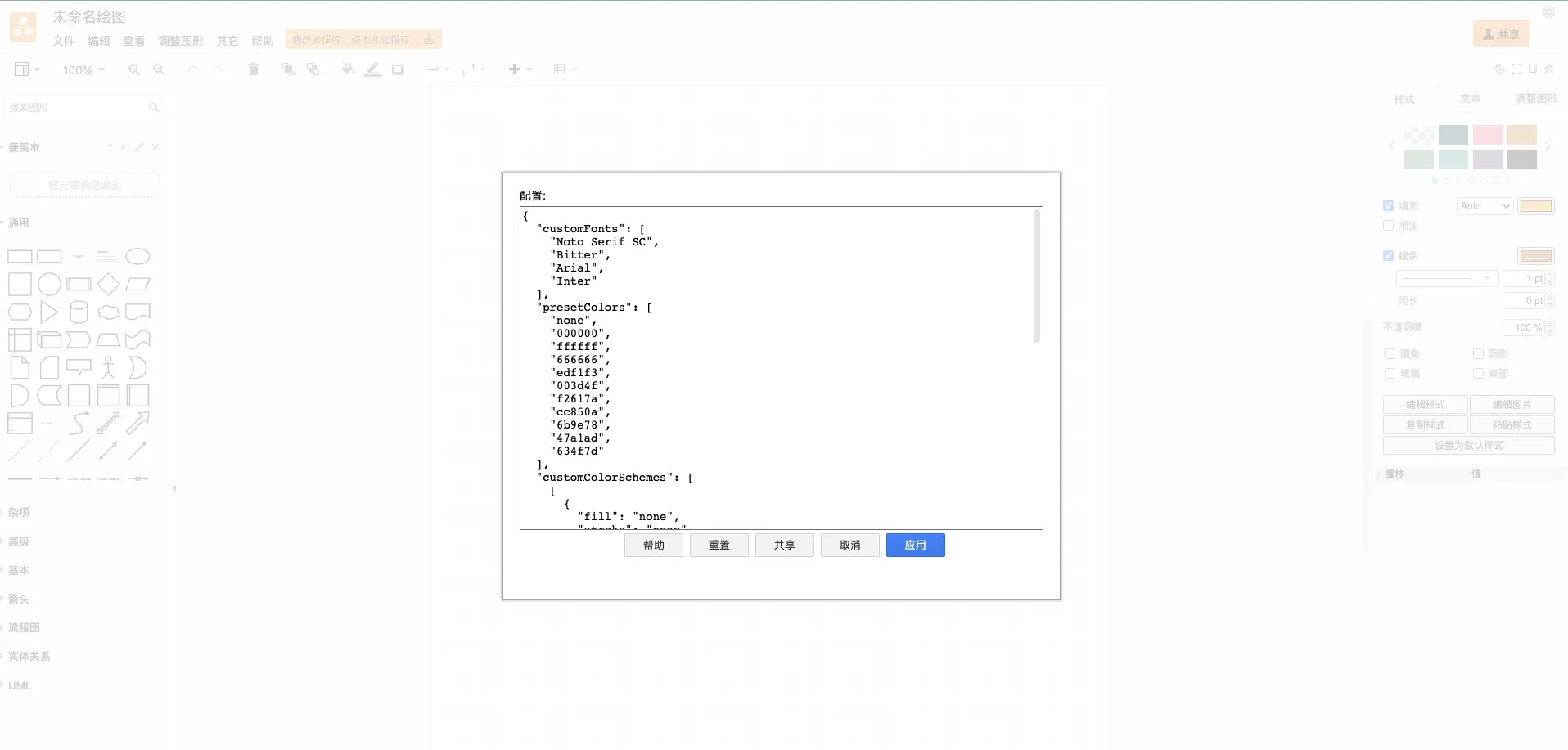

效果

https://cdn.staticaly.com/gh/guzhongren/data-hosting@main/Tools/DrawIO/web-style.2z3v7akawpe0.webp

VS Code 插件版(vscode-drawio)

配置信息

对于插件版本,我们可以将配置信息存储在全局(VS Code菜单-Code-Performances-Setting, 搜索 drawio, 点击任意Edit in settings.json)或者当前工程(.vscode/settings.json),然后将如下配置粘贴进去。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
"hediet.vscode-drawio.presetColors": [
    "none",
    "000000",
    "ffffff",
    "666666",
    "edf1f3",
    "003d4f",
    "f2617a",
    "cc850a",
    "6b9e78",
    "47a1ad",
    "634f7d"
  ],
  "hediet.vscode-drawio.colorNames": {
    "000000": "Onyx black",
    "ffffff": "Talc white",
    "666666": "文字和背景3",
    "edf1f3": "Mist grey",
    "003d4f": "Wave blue",
    "f2617a": "Flamingo pink",
    "cc850a": "Turmeric yellow",
    "6b9e78": "Jade green",
    "47a1ad": "Sapphire blue",
    "634f7d": "Amethyst purple"
  },
  "hediet.vscode-drawio.customColorSchemes": [
    [
      { "fill": "#ffffff", "stroke": "#ffffff" },
      { "fill": "#003d4f", "stroke": "#003d4f" },
      { "fill": "#f2617a", "stroke": "#f2617a" },
      { "fill": "#cc850a", "stroke": "#cc850a" },
      { "fill": "#6b9e78", "stroke": "#6b9e78" },
      { "fill": "#47a1ad", "stroke": "#47a1ad" },
      { "fill": "#634f7d", "stroke": "#634f7d" },
      { "fill": "#000000", "stroke": "#000000" }
    ]
  ],
  "hediet.vscode-drawio.customFonts": [
    "Noto Serif SC",
    "Bitter",
    "Arial",
    "Inter"
  ],

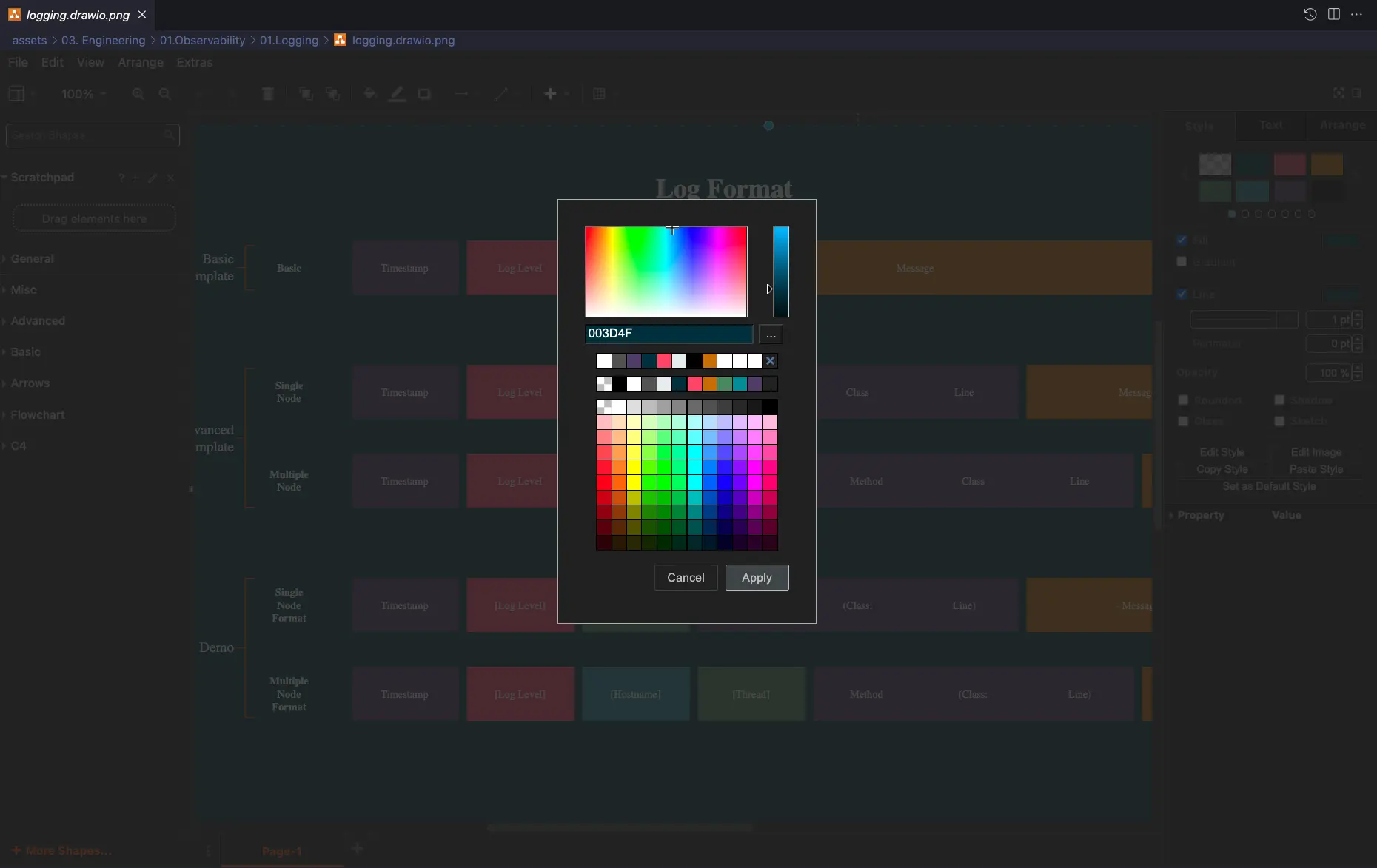

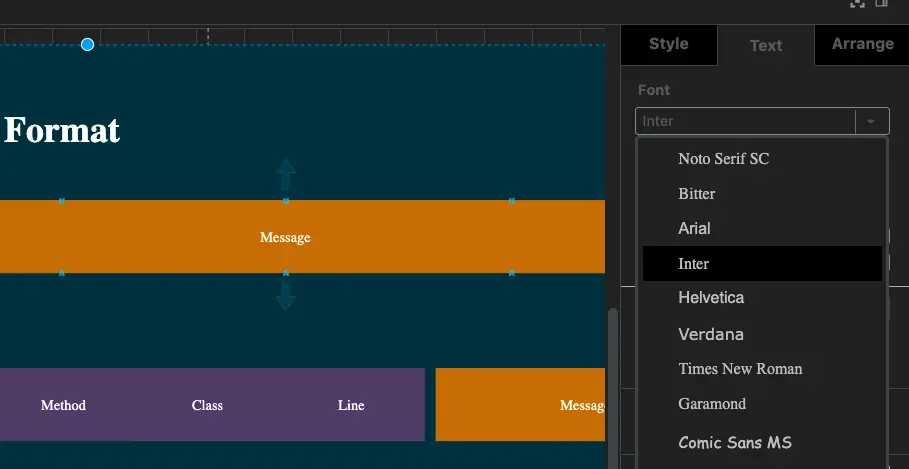

效果

https://cdn.staticaly.com/gh/guzhongren/data-hosting@main/Tools/DrawIO/preset.58se8wl6ltg0.webp

https://cdn.staticaly.com/gh/guzhongren/data-hosting@main/Tools/DrawIO/font.69qxu1ldebg0.webp

Refs

Disclaimer

本文仅代表个人观点,与 Thoughtworks 公司无任何关系。
